Projects and layers can be published to your on-premises or hosted SkylineGlobe Server directly from TerraExplorer Pro. This tutorial guides you through this process using the TerraExplorer offline kit project referenced in this article. The project includes a TerraBuilder terrain database, PhotoMesh 3D model, PhotoMesh point cloud, TerraBuilder Imagery layer, and GIS feature layers. After publishing, you can review the layers published to the SkylineGlobe Server, reload the project into TerraExplorer Desktop—now streamed from the SkylineGlobe Server—and access it viaTerraExplorer Fusion.
- Download and unzip Frederick-Sample_data_for_SGS.zip to your local drive.

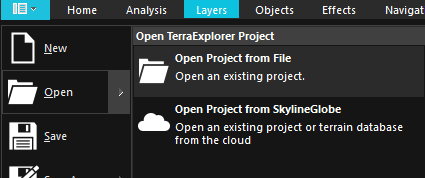

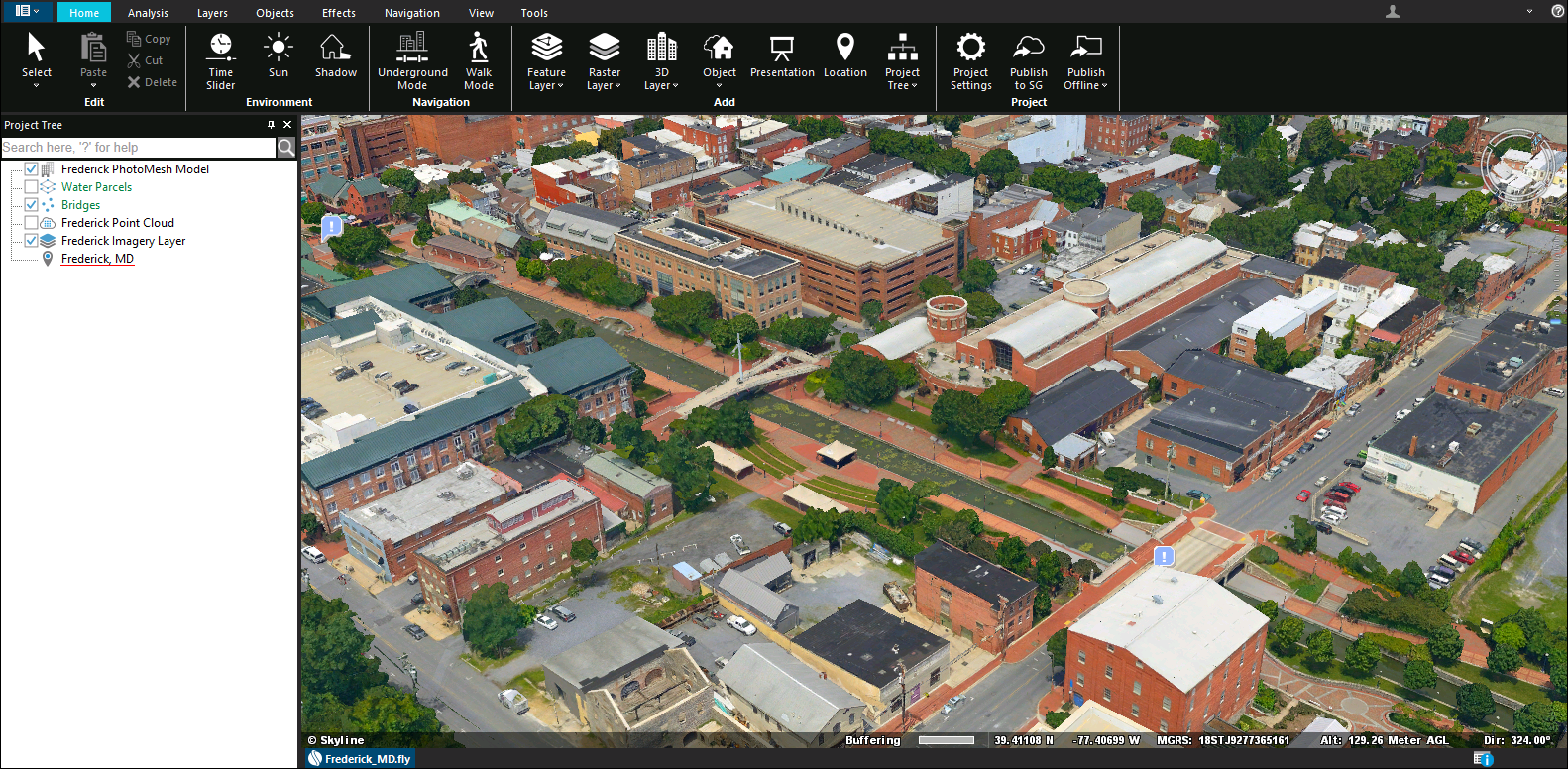

- Open TerraExplorer Pro and then open the Frederick_MD.fly project that includes the following files:
- Frederick_BaseMPT.mpt - Base terrain database
- Frederick_PhotoMesh_Model.3dml - PhotoMesh 3D mesh layer
- Frederick_Imagery.mpt - Imagery layer
- Frederick_PointCloud.cpt - Point cloud layer
- WaterPoly_FredCity.shp - Polygon feature layer
-
Bridges.shp - Point feature layer.
-

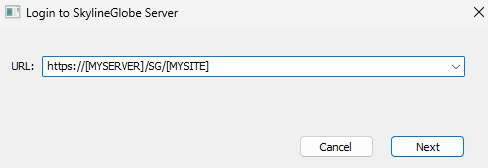

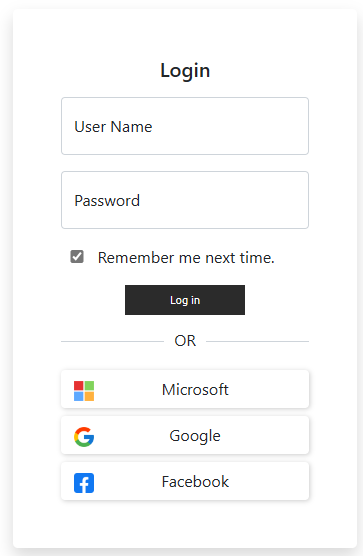

Log in to your SkylineGlobe Server under a Publisher or an Administrator user role.
-

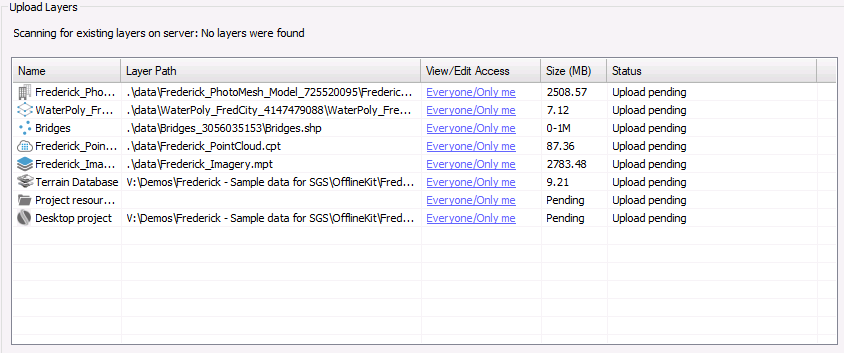

Publish the project to your SkylineGlobe Server.

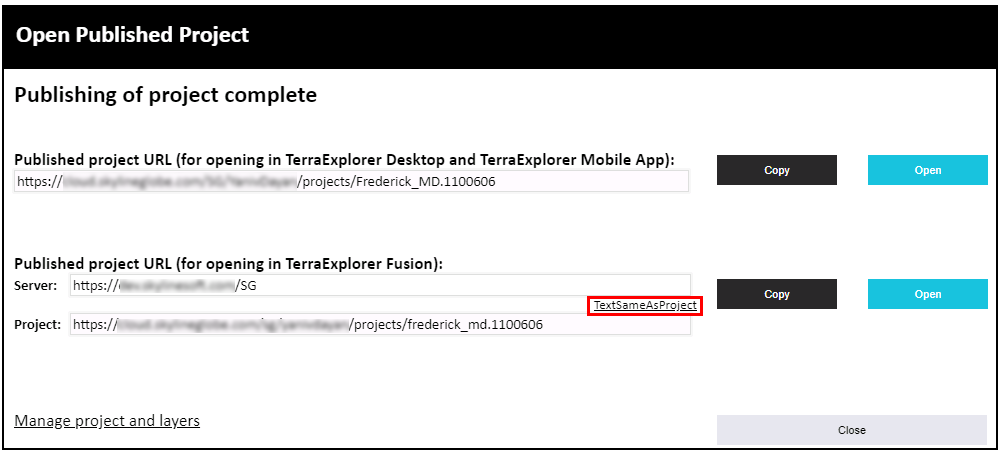

- Once the Publish process is finished:

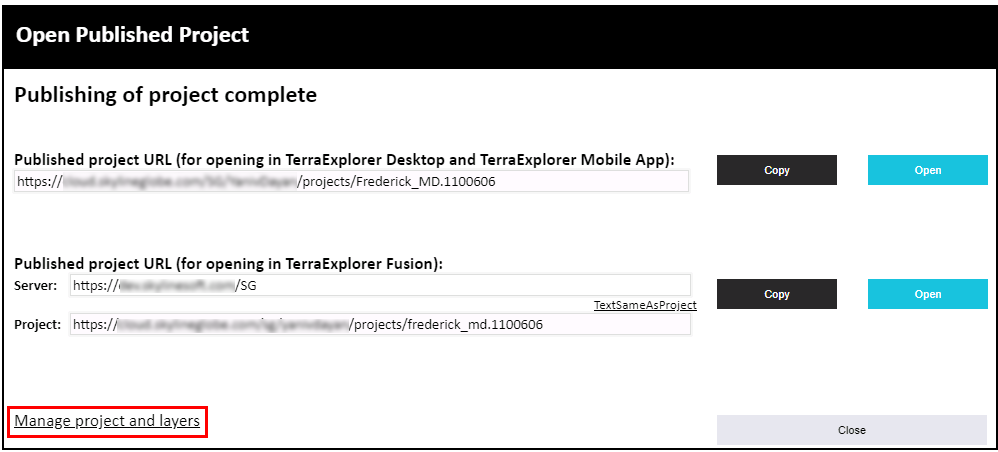

- Click Manage Project and Layers to view the published layers on your SkylineGlobe Server.
- Click Same As Project to restore the server URL to the one to which you published the project.

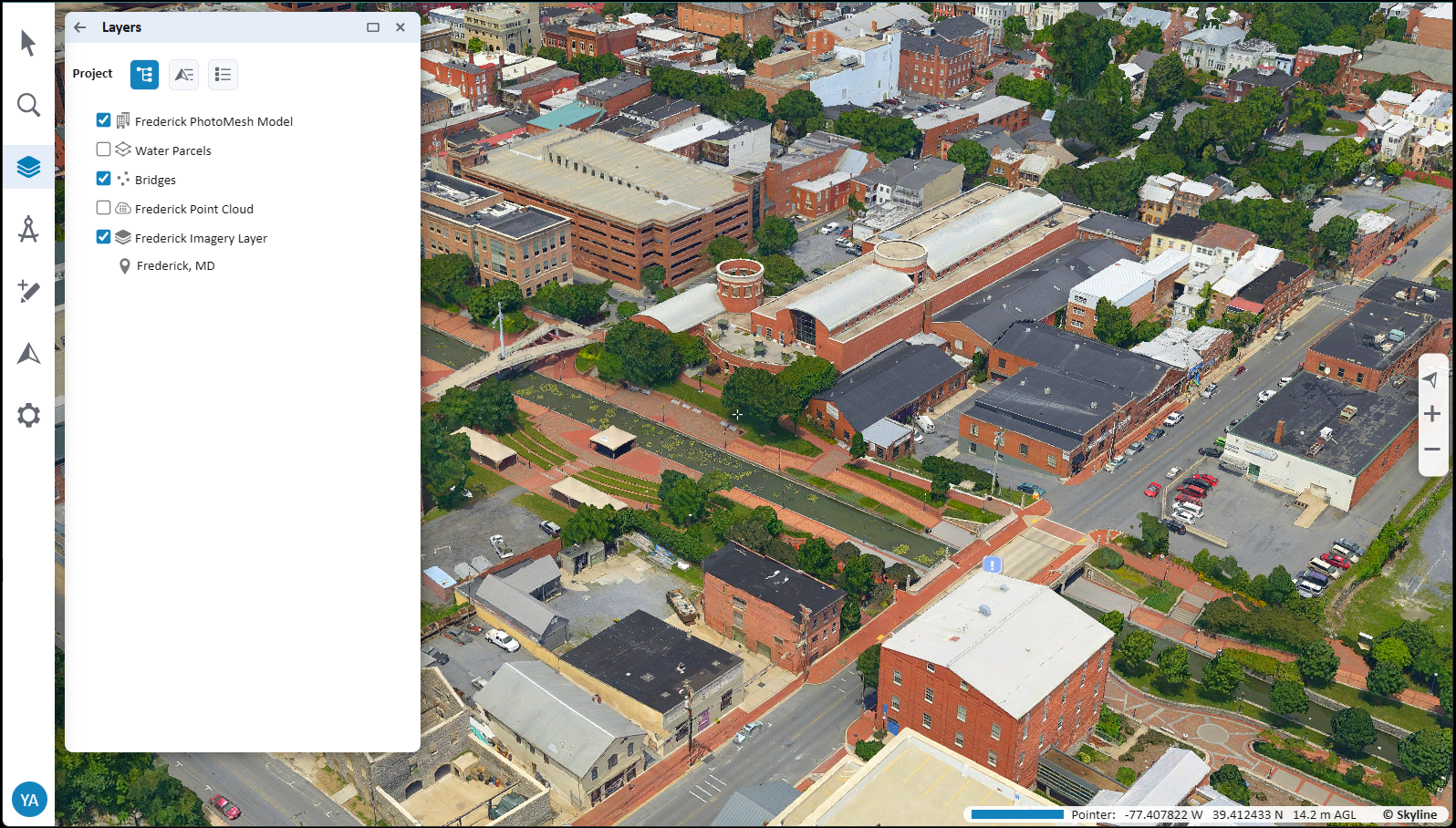

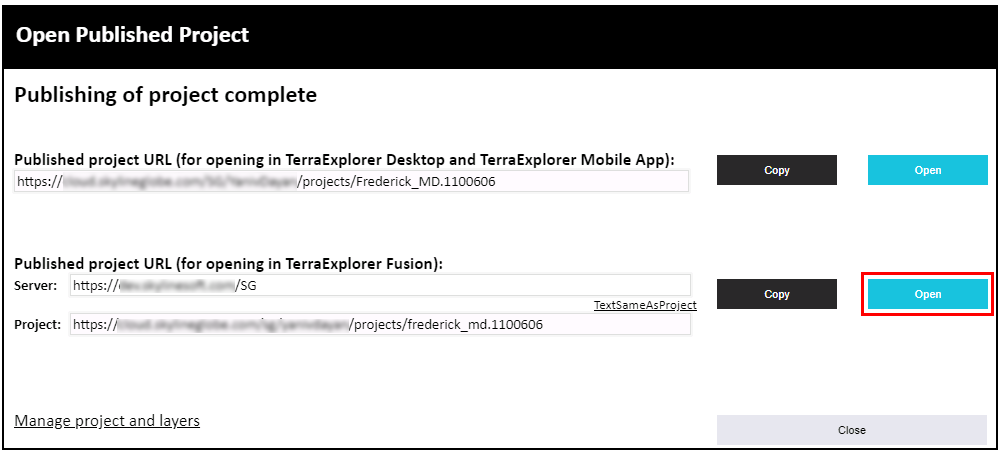

- To open the published project in TerraExplorer Fusion, click Open next to the Published project URL (for opening in TerraExplorer Fusion).

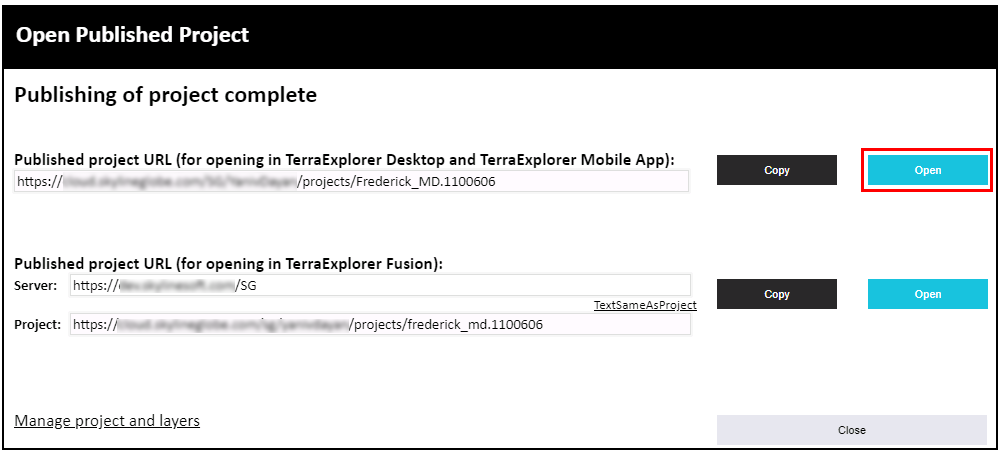

- To open the published project in TerraExplorer Desktop, click Open next to the Published project URL (for opening in TerraExplorer Desktop).
- Click Manage Project and Layers to view the published layers on your SkylineGlobe Server.

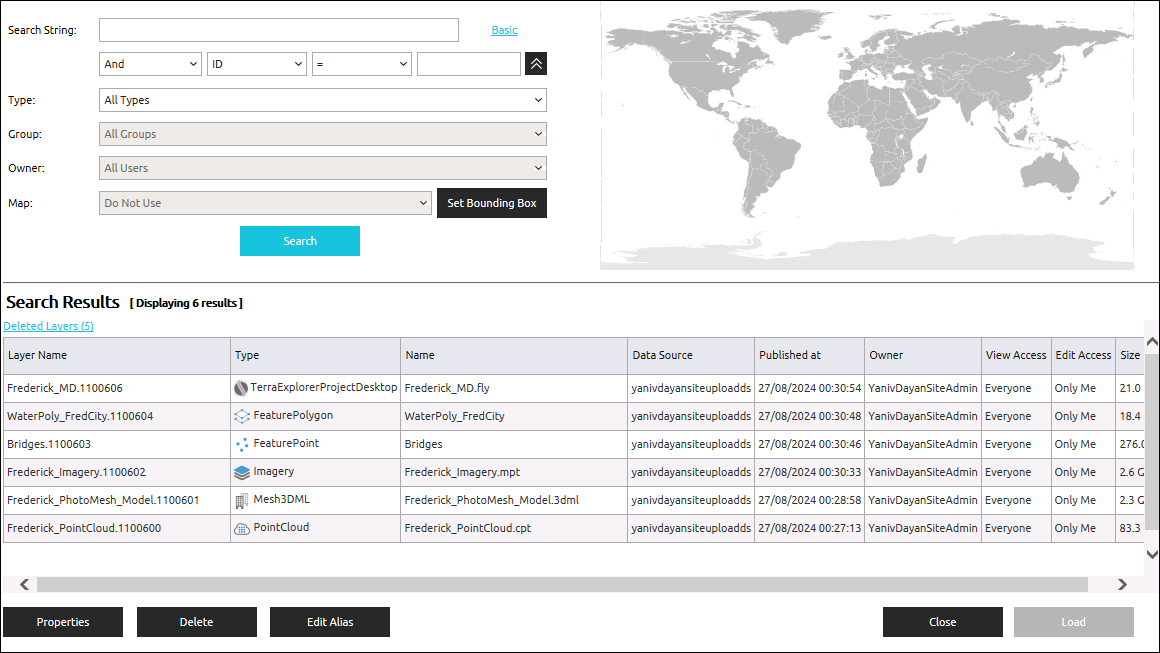

- In a web browser, open your SkylineGlobe Manager and then open the Layers tab to see the published resources.
