In this article:
Search feature layers by attribute:
After a layer is loaded into the project, you can query it by attribute.
- On the side toolbar >
> Project Tree or Layers tab > right-click the layer you want to query > Query Layer. The Query panel is displayed.

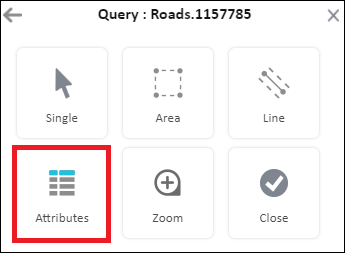

- To see attribute information and perform a search by attribute, click Attributes. The Attribute Table is displayed.
- In the Search query field, enter an attribute, operator, and value and click Search. Your search results are displayed in the search results list. To fly to a feature, double-click the feature’s row in the attribute table.
Perform spatial queries on feature layers:
You can select features based on their spatial relationship with a polygon, line or point that you draw.
- On the side toolbar >
- To perform a spatial query, select one of the following from the Query panel:
- Area– Select all features that are spatially related to the polygon that will be drawn.
- Line - Select all features that are spatially related to the line that will be drawn.
- Single – Select the feature that is clicked.
- In the 3D Window, do one of the following depending on the type of spatial query:
- Area selection – Place the polygon points in the 3D Window by clicking in the desired locations. You must place at least three points. Finish the polygon creation by right-clicking.
- Line selection - Place the line points in the 3D Window by clicking in the desired locations. You must place at least two points. Finish the line insertion by right-clicking.
- Point selection – Place a single point in the 3D Window by clicking in the desired location.
- Toggle off the Spatial Query command when you want to turn off the query.
