In this article:
- Display a contour map
- Display a slope map
Display a contour map on the entire terrain
- On the sidebar > Settings > in Analysis section, under Contour Map select the following:
- The map mode: Colors or Colors and Lines.
- The map’s interval color mode: Static Mode – A different color is assigned to each altitude level from a set contour palette OR Dynamic Mode – The contour palette intervals and colors dynamically adjust, to enable high color contrast at all resolution levels.

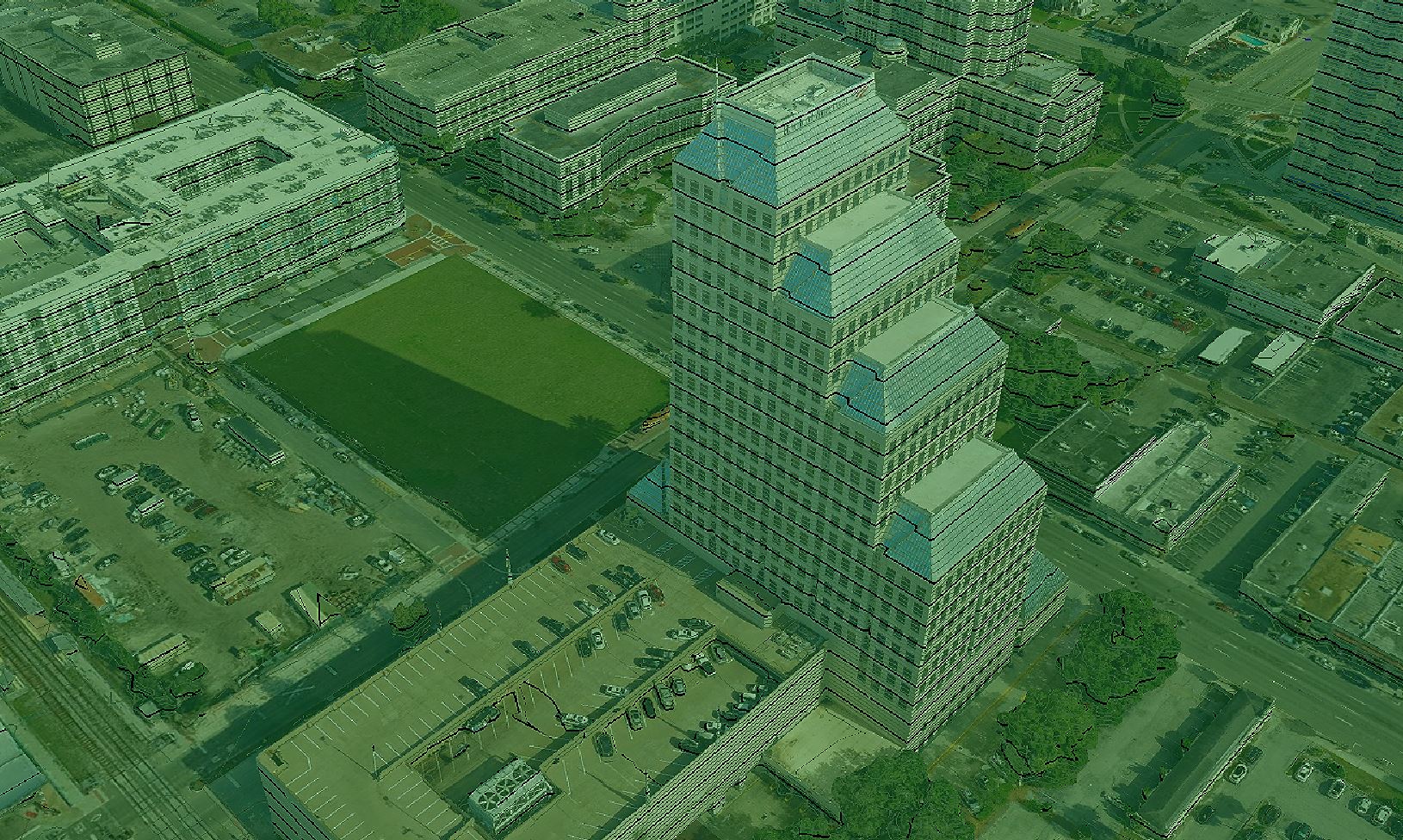

- On the sidebar > Analysis tab > turn on the Contour Map. A contour map overlays the entire 3D Window, and the contour map’s check mark is highlighted in the sidebar.
Display a slope map

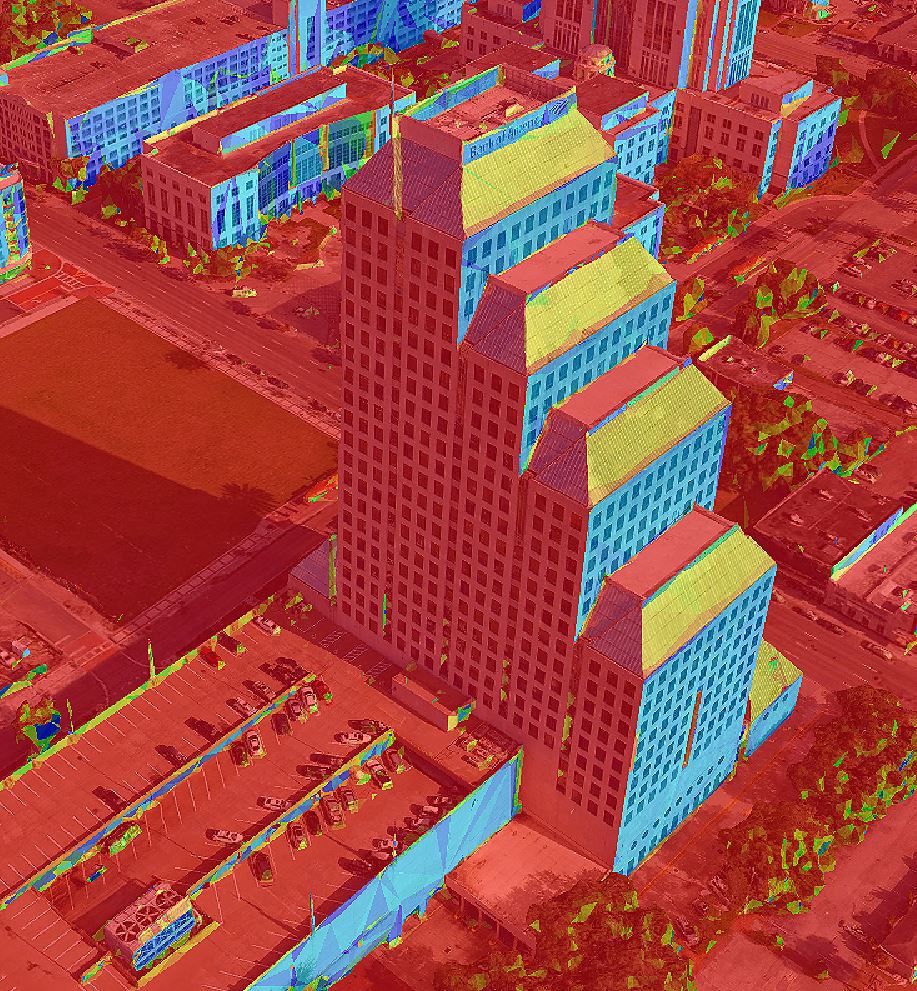

On the sidebar > Analysis tab > switch on the Slope Map. A slope map overlays the entire 3D Window, and the slope map’s check mark is highlighted in the sidebar. Slope map colors are rendered on terrain textures as well as on 3D models.
