Display the terrain elevation profile along a defined path.

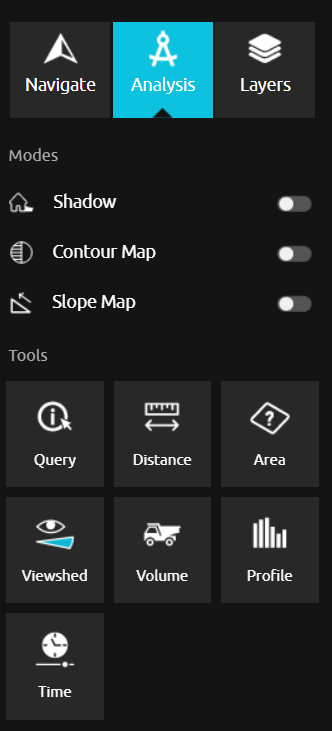

- On the sidebar > Analysis tab > Profile.
- Click any point on the terrain to define the start point of the measurement. Click to set the second point and then again for each additional segment.
- Click Terrain Profile
to calculate the terrain profile. When calculation is complete, a terrain profile graph is displayed, showing the terrain elevation profile.
- Turn on the information you want indicated on the graph: polyline waypoints, min/max altitude and max slope.
