PhotoMesh version 8.0.3 leverages Depth Anything V2, an advanced monocular depth estimation model for automated mask creation in Close Inspection projects. This approach is used to create highly accurate depth maps, which PhotoMesh integrates into the aerotriangulation engine for enhanced tie point matching, bundle adjustment, and camera calibration.
To activate this option, do the following:
- Start a new build. Make sure that this is the first time the project is being built, since masks are generated during the Data Preparation step at the start of the project.

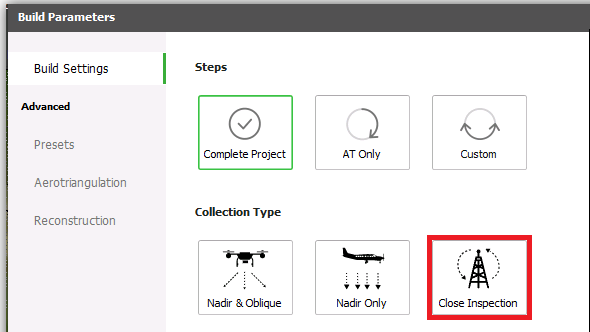

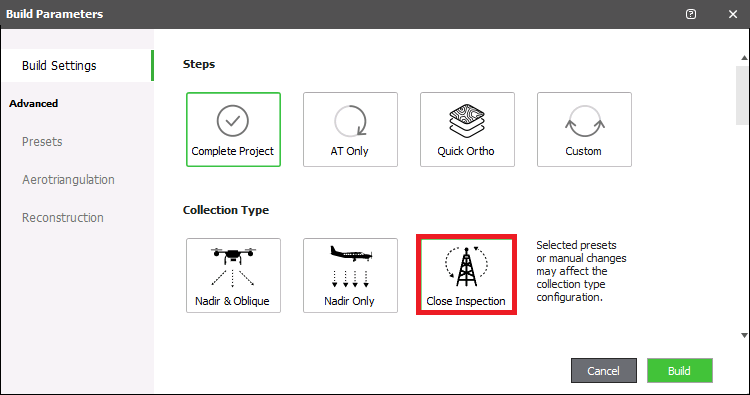

- In the Build Parameters dialog, on the Build Settings tab, select the Close Inspection option as the Collection Type.
- On the Aerotriangulation tab, add the following flag at the bottom of the AT settings: -bn_gm 3
