This tutorial outlines the complete workflow for creating professional grade output in PhotoMesh using Lidar data:

Data Included in Training Folder (MetaDuo_LiDAR_Project_Data)

This project’s photos and Lidar were collected using two Phase One cameras and a RIEGL Lidar sensor, all mounted on a Lead’Air mount. This data and everything else you need to create your mesh is included in the MetaDuo_LiDAR_Project_Data folder:


  • Aol folder
    • Large aerotriangulation area polygon shapefile – Orlando_Skyline_Training_Large_AoI.shp
    • Small aerotriangulation area polygon shapefile – Orlando_Skyline_Training_Small_AoI.shp
  • GCP folder
    • Sampled_LeadAir_Training_cp.gcp
    • Unsampled_LeadAir_Training_cp.gcp
    • PDF with descriptions of the control points used
  • Images folder
    • 454 photo files
    • XML file with the photo information – Orlando_MetaDuo_PhotoMesh_Import.xml
  • LAS folder
    • 9 LAS files
  • Water_Polygon folder
    • Water polygon file – Orlando_Training_Water_Polygon.shp

Download project data (83 GB)

Step 1: Starting a New PhotoMesh Project

  1. Click Start > Skyline PhotoMesh > PhotoMesh.
  2. Click the PhotoMesh button , and then click New (CTRL+N). The New Project dialog box is displayed.

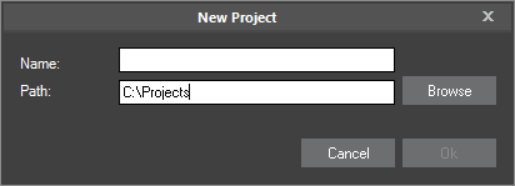

  3. Enter a name and path location for your project.

Step 2: Loading the Project Photos and Lidar

Photos can be loaded into a project using several different methods. In this tutorial, we will be loading an XML file with a list of photos, their file paths, and all photo and photo collection information. More about: Loading Photos into a Project >

Lidar data can be loaded into a PhotoMesh project and integrated with project photos to supplement project data and increase model accuracy. PhotoMesh supports Lidar data in .las, .laz or .e57 formats. More about: Loading Lidar Data >

To load photos and Lidar:

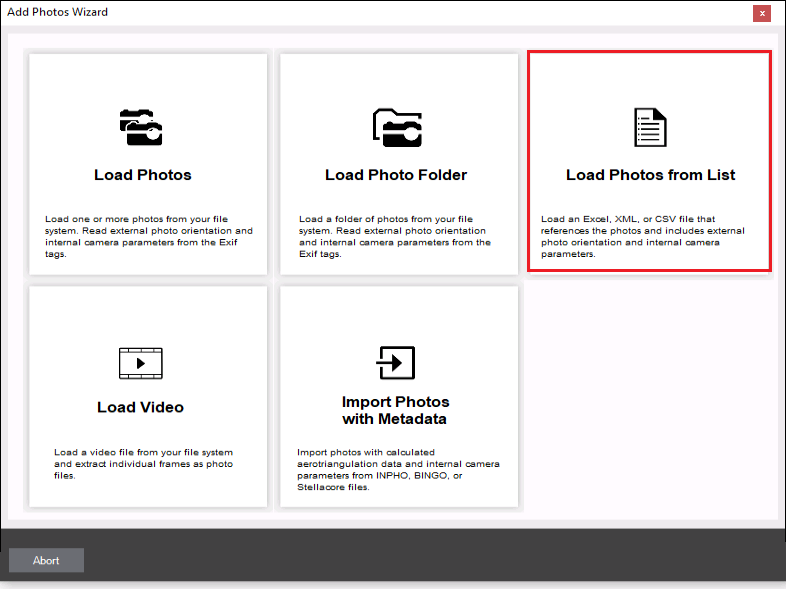

  1. Load Photos: On the PhotoMesh Home tab, click Photos, and then select Load Folder from the Add Photos Wizard.

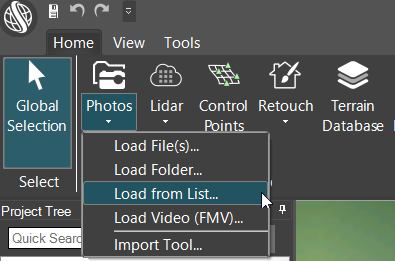

  2. On the PhotoMesh Home tab, from the Photos dropdown menu, select Load Photos from List. Then browse to the XML file with all the photo information (.\MetaDuo_LiDAR_Project_Data\Images\Orlando_MetaDuo_PhotoMesh_Import.xml). The photo files are loaded into the project.
  3. Click Next and then click Edit in PhotoMesh.
  4. Load Lidar: On the Home tab, click the arrow under Lidar, and select Load Folder. Then browse to the LAS folder (.\MetaDuo_LiDAR_Project_Data\LAS), and click Open. All the Lidar files in the folder are loaded into the project.

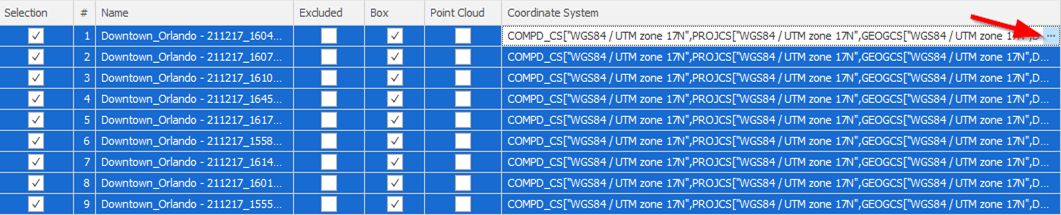

  5. In the Project Panel, select the LiDAR group, and in the Lidars list, select the check boxes of all the Lidars. Then click Select clickselect.png to set a different coordinate system. The Coordinate System dialog is displayed.

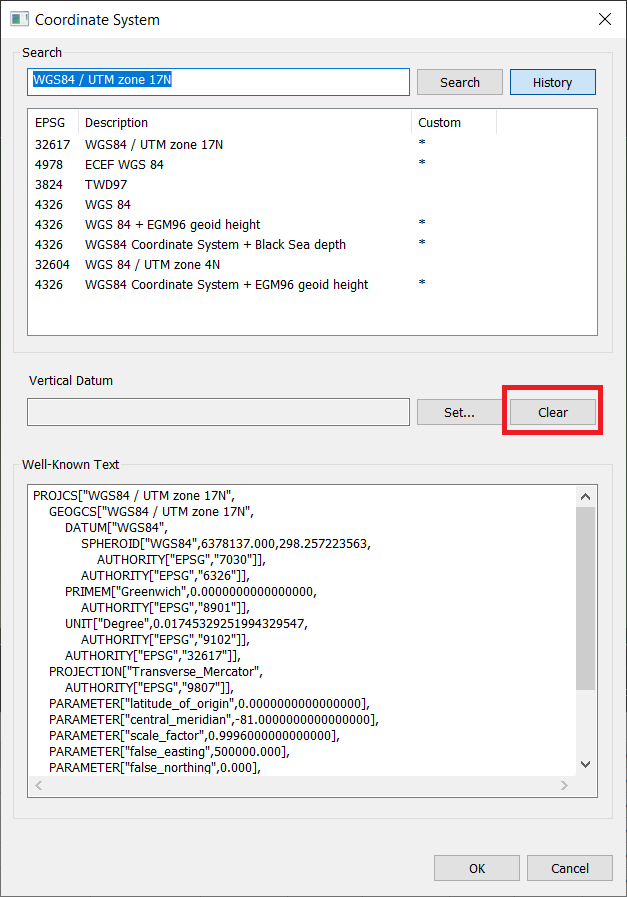

  1. In the Vertical Datum section, select Clear next to the Vertical Datum. Then click OK.
  2. Show a Lidar on the terrain to see if it fits with the project's photos, other Lidar, ground control points, etc. Proper alignment of the project’s photos with the Lidar data can be verified and corrected using ground control points by projecting the photos on the Lidars.

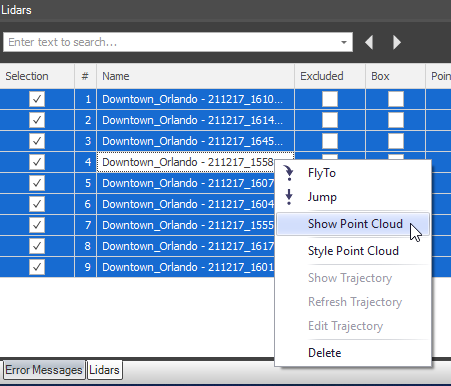

    In the Project Panel, select the Lidars group, and then in the Lidars list, select all the Lidars. Then right-click > Show Point Cloud. Note that the point cloud may take some time to display.


Step 3: Setting the Aerotriangulation Area

The AT area defines the area of the project on which PhotoMesh should perform aerotriangulation. Aerotriangulation is the process for determining the correct position and orientation of each of the project photos, based on inputted photo information, ground control points and tie points. If a project’s photos do not have fully trusted camera positioning and orientation information, this process must be performed before generation of the 3D mesh model.

The AT area automatically defined by the photos' GPS tag includes all the project’s photos. If you want to restrict the AT area to only the photos within a specific area on the terrain, the specific area can be defined using an AT area polygon that you draw or import. This enables you to perform aerotriangulation on a small subset of the project to validate camera parameters and build settings and check the resulting AT and reconstruction tiles before building the full project. More about: Setting the AT Area >

Your training folder includes two aerotriangulation area shapefiles: a large one and a small one. In this step, we first perform aerotriangulation on a small subset of the project to validate parameters and settings, so we will use the small aerotriangulation polygon.

To set the aerotriangulation area:

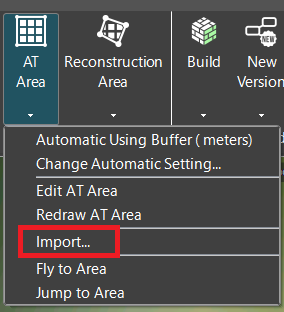

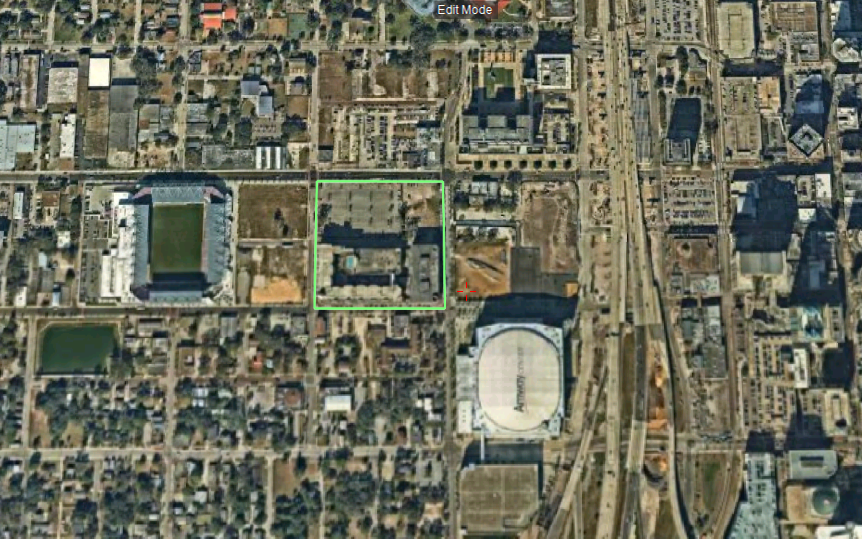

  • On the Home tab, click the arrow under AT Area, and select Import. Then in the Import Aerotriangulation Area Polygon Layer dialog, browse to the shapefile with the required polygon (.\MetaDuo_LiDAR_Project_Data\Aol\Orlando_Skyline_Training_Small_AoI.shp), and click Open.



Step 4: Using Control Points to Improve AT Results

PhotoMesh provides three types of control points for improving your AT results: ground control points, check points, and tie points. In this training exercise, we will be working with ground control points. Ground control points improve the accuracy of the model’s position by associating real-world X, Y, Z coordinates (generally obtained through surveying or sampling methods) with corresponding locations (in pixels) in photos.

Control points can be created in PhotoMesh or imported in a gcp (text format) file with control point information. More about control points >

In this tutorial, you will be importing a gcp file which includes the locations on the terrain in which control points were created and the pixel coordinates for each sampled photo in which each control point was sampled.

To import ground control point data:

  • On the Home tab, click the arrow under Control Points and select Import. Then in the Import Control Point File dialog, browse to .\MetaDuo_LiDAR_Project_Data\GCP\Sampled_LeadAir_Training_cp.gcp in your training packet, and click Open.

Step 5: Performing an AT Only Build

For optimal AT results, it is recommended to initially perform only the aerotriangulation step (“AT Only”), and then review the results, to ensure a precise AT which includes all project’s photos that intersect with the AT area, before proceeding with the rest of the build. If the results of the AT Only were in fact satisfactory, you can continue with the rest of the build process.

If the results of the initial AT Only build were unsatisfactory, AT parameters or collection properties should be modified and/or control points added/edited based on the aerotriangulation result, and then the AT should be repeated. More about: Evaluating and Improving Your AT >. When repeating the aerotriangulation, PhotoMesh determines precisely which tiles and which specific AT sub-processes were affected by the modification of properties or control points, enabling a much lighter and faster AT process. This iterative process should be repeated until satisfactory AT results are achieved.

To perform an AT Only build:

  1. On the Home tab, in the Build group, click Build. The Build Parameters dialog box is displayed.

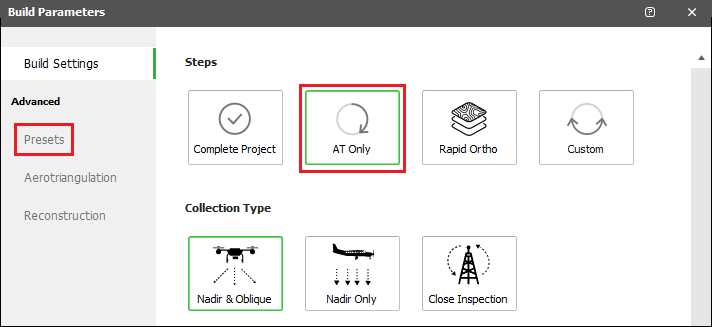

  2. On the Build Settings tab, select AT Only.
  3. Then click the Presets tab, and click Select and Manage. The Preset Manager is displayed.

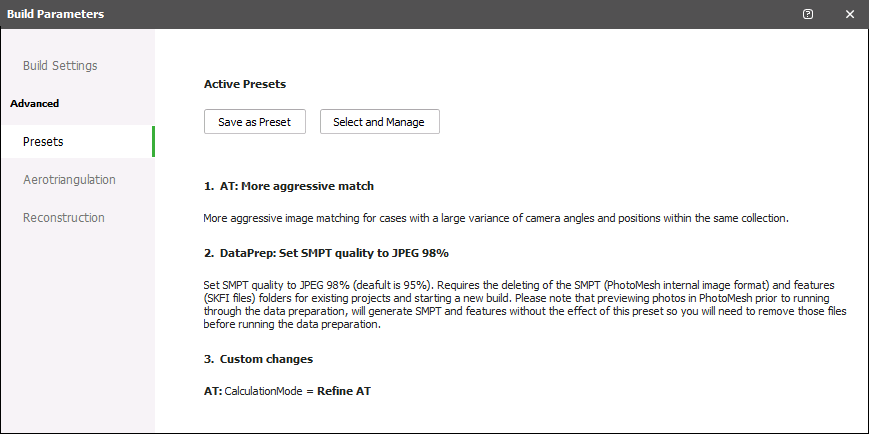

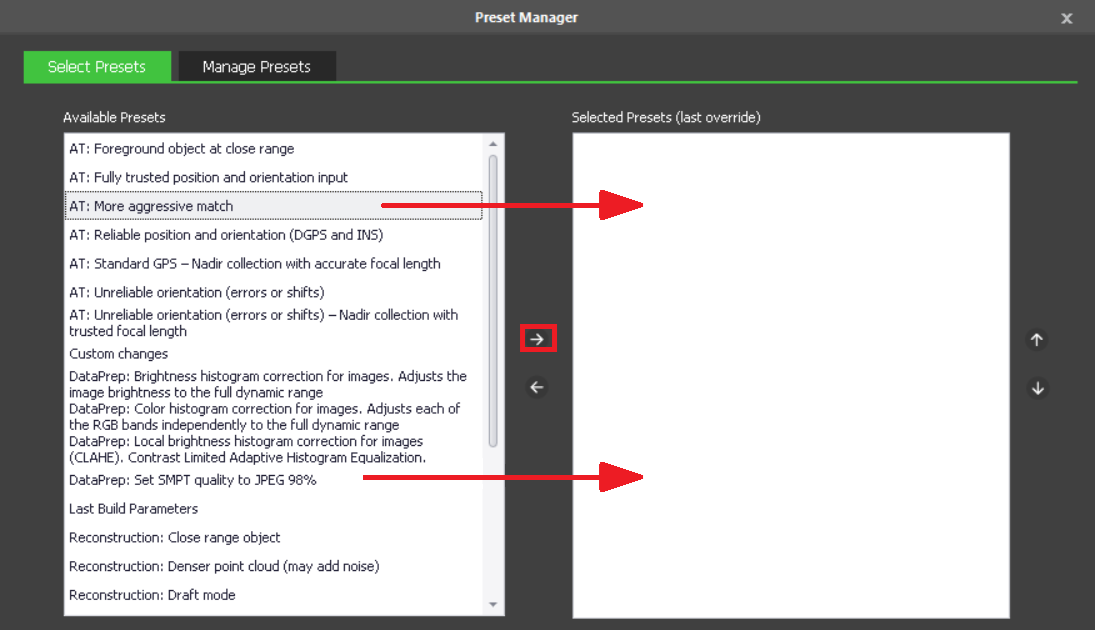

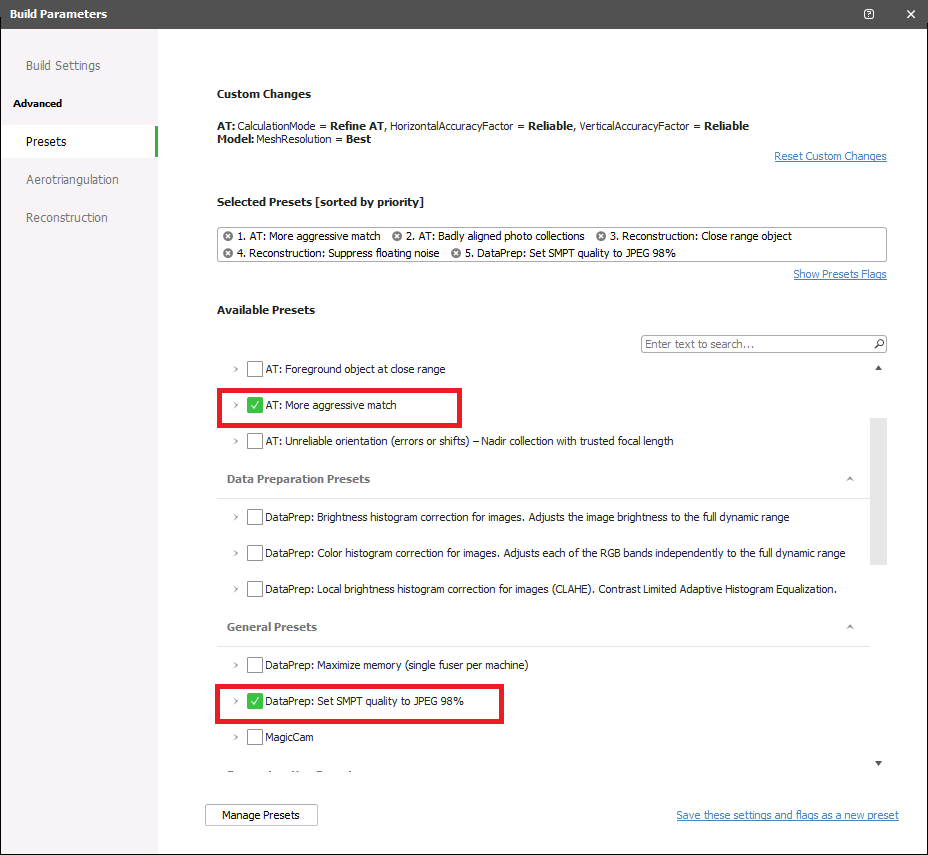

  4. On the Select Presets tab, clear the Selected Presets list on the right side of the Preset Manager by selecting each preset and clicking Remove removearrow.png. On the left side of the Preset Manager is a list of available presets. Select the AT: More Aggressive Match preset (for datasets with multiple camera angles and positions), and then click Add addarrow.png to move it to the Selected Presets Do the same for the DataPrep: Set SMPT quality to JPEG 98% preset (for projects that are quality focused, this preset requires above average processing). Then click OK.
  5. On the Aerotriangulation tab, set the Calculation Mode to Refine AT – PhotoMesh assigns a strong weight to inputted camera positioning. If the inputted camera positions are inaccurate or inconsistent with any provided control points, it may be advisable to use the Standard GPS option. This option is recommended for collections captured by professional systems with accurate positioning and orientation information (e.g., using DGPS and INS).
  6. Click Build. Then enter a build name and click Ok. The PhotoMesh Build Manager is displayed.

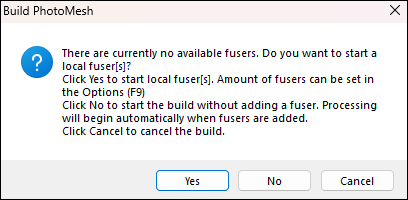

  7. Click Build. The Build PhotoMesh notification dialog is displayed, asking if you want to start a local fuser on the master machine to take advantage of its computing resources. Click Yes.
    Note:  If you want to run fusers on other computers on your network instead of a local fuser, see the Fuser section below for more information.

Step 6: Performing Full Build and Generating Outputs

After satisfactory AT results are achieved in an AT Only build, you are ready to perform the full build process and generate your required outputs.

To perform a full build:

  1. Set the aerotriangulation area to include all the project’s photos. See Step 3 for more information. This time, use the large polygon shapefile to set the area: (.\MetaDuo_LiDAR_Project_Data\Aol\Orlando_Skyline_Training_Large_AoI.shp)
  2. On the Home tab, in the Build group, click Build. The Build Parameters dialog box is displayed.
  3. On the Build Settings tab, click Complete Project.

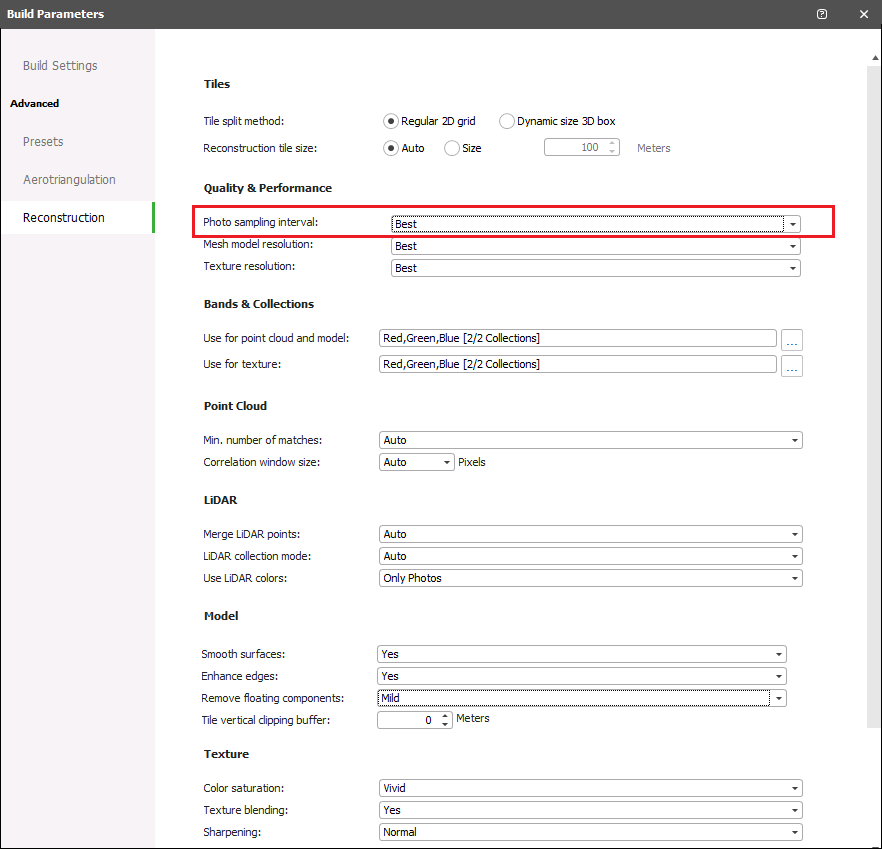

  4. Click the Reconstruction tab to configure the reconstruction parameters. More about: Setting Build Parameters > The parameters should already be defined as required based on the presets selected in step 5. Set the Photo Sampling Interval to Best.

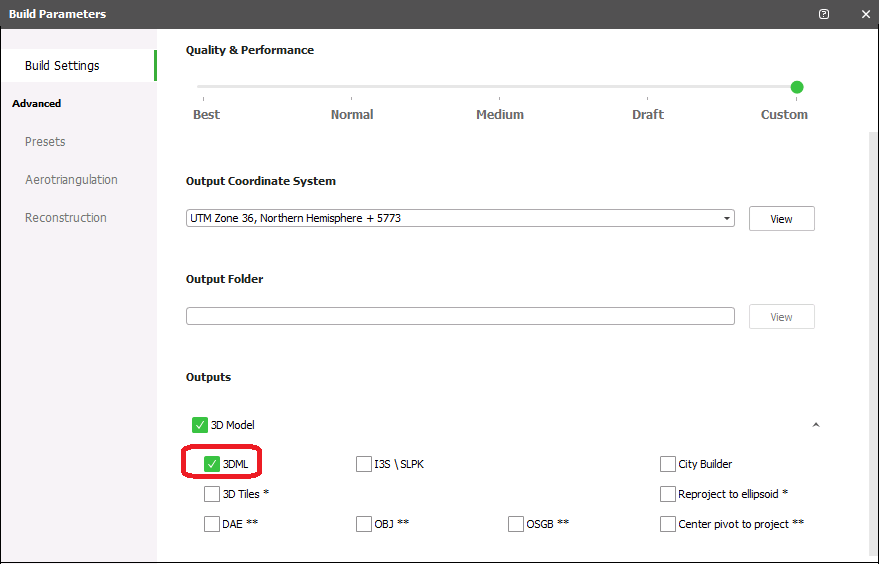

  1. On the Build Settings tab of the Build Parameters dialog, select the check boxes of the required outputs. For the purposes of this tutorial, select 3DML. More about: Setting Output Formats >
  2. Click Build. PhotoMesh Build Manager is displayed. Click Build. The Build PhotoMesh notification dialog is displayed, asking if you want to start a local fuser on the master machine to take advantage of its computing resources. Click Yes. If you want to run fusers on other computers on your network instead of a local fuser, see the Fuser section below for more information.
  3. When the build is complete, it will be listed in the Build Outputs list. Select its Visible checkbox to display the final output.
    Note:  To open an output in TerraExplorer, in the Build Outputs list, click Open with TerraExplorer openinterraexplorer.png. A FLY file opens in TerraExplorer with the 3DML, AT Calculated Photos, AT Tiles, DSM, DTM, and Orthophoto outputs, if they were generated in the PhotoMesh project.

More about: Adding LiDAR and trajectory data and Integrating imagery and LiDAR >

Starting and Managing Fusers

PhotoMesh fusers are the worker components of PhotoMesh, which allow you to share the demanding processing requirements of the different build steps (photo preparation, AT, point cloud, mesh model, texture, 3DML/other outputs) between several computers on the same network. When beginning the build process, the PhotoMesh Build Manager application determines what build steps are required and assigns them to the different fusers. PhotoMesh Build Manager and PhotoMesh fusers use the working folder to communicate: to deposit and collect pending tasks, and share information about fuser availability, status and progress. Before beginning the build process, you should start the fusers that will be participating in the build and set their working folder. More about: Working with Fusers >
