The vast majority of the API available for TerraExplorer Desktop can also be utilized in TerraExplorer Fusion (TEF) development. ISGWorld81 serves as the main entry point to these TerraExplorer interfaces. Through this interface you can manage your application and 3D content and handle events. More about: TerraExplorer API >
In addition, TerraExplorer Fusion provides a limited set of Fusion-specific APIs that can be used to add and activate custom analysis and navigation tools. TerraExplorer Fusion API has two main objects: analysis and navigate. These objects are documented below.
analysis
The analysis object is composed of methods relating to analysis in a project. The only methods documented here relate to adding an analysis tool to TerraExplorer Fusion’s analysis panel and opening the custom tool.
The following methods are available:
Methods

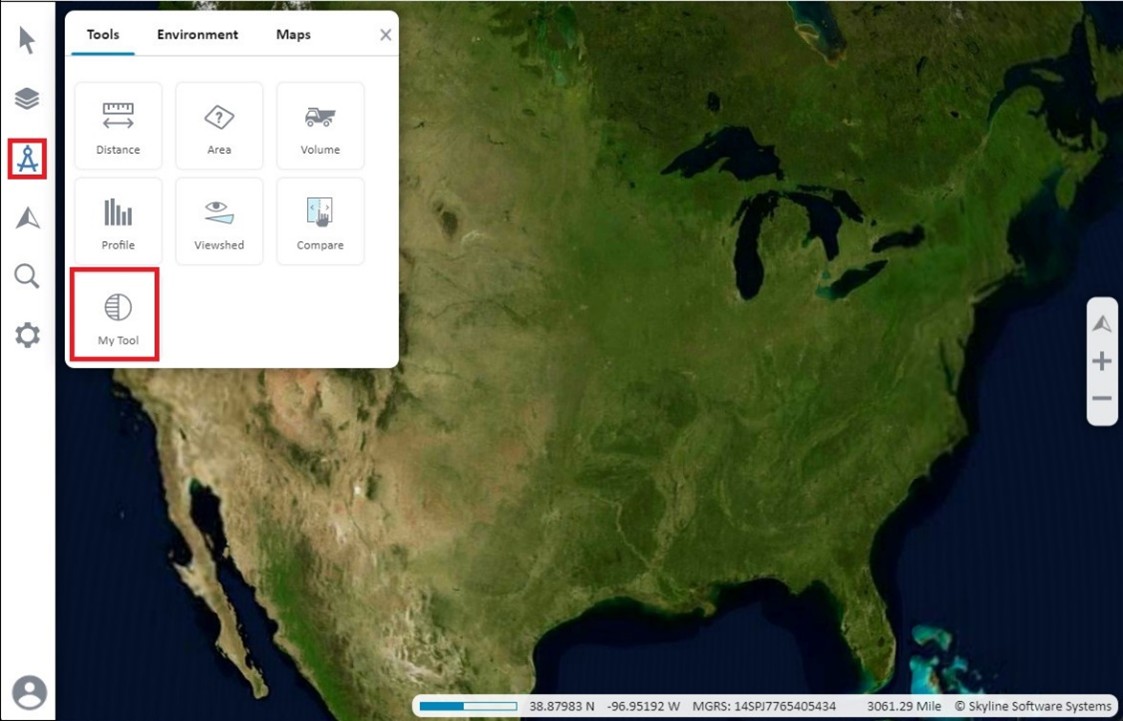

addAnalysisTool
addAnalysisTool(id,name,title,icon,action)
Adds an analysis tool to the Analysis Tools panel.
Parameters:
Name | Type | Description |
id | String | Tool’s ID. |
name | String | Tool’s heading. |
title | String | Tool’s tooltip. |
icon | String | Path to icon to display for tool in Tools panel. The icon must be saved in the same domain as the one from which you are running TerraExplorer Fusion. |
action | Enum | Action to take when tool is activated: |
Example:
analysis.addAnalysisTool({
id:'myToolBtnID1',
name:'My Tool',
title:'My analysis tool',
icon:'./custom/tools/MyAnalysisTool/myTool.png',
action:'analysis.openAnalysisToolURL('./custom/tools/MyAnalysisTool/MyTool.html','My tool',true)'
});
openAnalysisToolURL
openAnalysisToolURL(path,name,backbutton)
Opens an analysis tool in TEF’s analysis panel.
Parameters:
Name | Type | Description |
path | String | Path to HTML tool. |
name | String | Title for HTML tool. |
backbutton | Boolean |
Boolean that determines whether a back button is displayed. |
Example:
navigate.openAnalysisToolURL(
'./custom/tools/MyAnalysisTool/MyTool.html',
'My tool',
true
);
openPopupDialogURL
openPopupDialogURL(path,name,position)
Opens an analysis tool in a popup window. Note that popup tools are going to be discontinued in the next version of TerraExplorer Fusion.
Parameters:
Name | Type | Description |
path | String | Tool’s ID. |
name | String | Tool’s heading. |
position | Integer | X,Y screen coordinates of popup window. Pass -1 to keep tool open. |
Example:
application.openPopupDialogURL(
'./custom/tools/MyAnalysisTool/MyTool.html',
'My tool',
500,500,-1
);
navigate
The navigate object is composed of methods relating to navigation in a project. The only methods documented here relate to adding a navigation tool to TerraExplorer Fusion’s navigation panel and opening the custom tool.
The following methods are available:
Methods
addNavigateTool
addNavigateTool(id,name,title,icon,action)
Adds a navigation tool to the Navigation Tools panel.
Parameters:
Name | Type | Description |
id | String | Tool’s ID. |
name | String | Tool’s heading. |
title | String | Tool’s tooltip. |
icon | String | Path to icon to display for tool in Tools panel. The icon must be saved in the same domain as the one from which you are running TerraExplorer Fusion. |
action | Enum |
Action to take when tool is activated: |
Example:
navigate.addNavigateTool({
id:'myToolBtnID1',
name:'My Tool',
title:'My navigation tool',
icon:'./custom/tools/MyNavigationTool/myTool.png',
action:'navigate.openNavigateToolURL('./custom/tools/MyNavigationTool/MyTool.html','My tool',true)'
});
openNavigateToolURL
openNavigateToolURL(path,name,backbutton)
Opens a navigation tool in TEF’s navigation panel.
Parameters:
Name | Type | Description |
path | String | Path to HTML tool. |
name | String | Title for HTML tool. |
backbutton | Boolean |
Boolean that determines whether a back button is displayed. |
Example:
navigate.openNavigateToolURL(
'./custom/tools/MyNavigationTool/MyTool.html',
'My tool',
true
);
openPopupDialogURL
openPopupDialogURL(path,name,position)
Opens a navigation tool in a popup window. Note that popup tools are going to be discontinued in the next version of TerraExplorer Fusion.
Parameters:
Name | Type | Description |
path | String | Tool’s ID. |
name | String | Tool’s heading. |
position | Integer | X,Y screen coordinates of popup window. Pass -1 to keep tool open. |
Example:
application.openPopupDialogURL(
'./custom/tools/MyNavigationTool/MyTool.html',
'My tool',
500,500,-1
);
