Supported Input and Output Formats

Eylon Sirotkin
  • Updated

SkylineGlobe applications are designed with interoperability and flexibility at their core, allowing you to integrate data in a range of formats into your projects and share your geospatial layers and products with other GIS applications, using Skyline's robust export capabilities. All Skyline applications support a wide range of read and write formats.


PhotoMesh

Inputs
  • Photos - JPEG, TIFF, IIQ
  • Photo Lists - Excel, XML, PhotoMeshXML, CSV, Inpho, Bingo, TXT
  • Video - MPEG, AVI, MOV, WMV, Others
  • LiDAR - LAS/LAZ, E57



Outputs:
  • 3D Mesh - 3DML, 3D Tiles, DAE, OBJ, OSGB, I3S/SLPK
  • Point Cloud - LAS/LAZ
  • Orthophoto - Tiff (4 bands)
  • DTM - Tiff
  • DSM - Tiff, LAS/LAZ
  • AT Results - XML, SQLite



TerraBuilder

Inputs:
  • Raster Layers - TIFF, JPEG, JPEG 2K, GeoPackage, BMP, MrSid, IMG, ECW, VRT, Others
  • Raster Servers - SkylineGlobe Server, WMS/WMTS, ArcSDE, Oracle Spatial Database, ECW, Google Earth Enterprise



Outputs:
  • Terrain Database - MPT, TBP DirectConnect



TerraExplorer

Inputs:
  • Feature Layers - TIFF, JPEG, JPEG 2K, GeoPackage, BMP, MrSid, IMG, ECW, VRT, DXF, DWG, Others
  • Feature Servers - SkylineGlobe Server, ESRI, ArcGIS REST, Oracle Spatial Database, Postgre SQL, WFS/WFS-T, ESRI ArcSDE, Microsoft SQL Spatial, ODBC Database
  • Raster Layers - TIFF, JPEG, JPEG 2K, GeoPackage, BMP, MrSid, IMG, ECW, VRT, Others
  • Raster Servers - SkylineGlobe Server, WMS/WMTS, ArcSDE, Oracle Spatial Database, ECW, Google Earth Enterprise
  • 3D Mesh Layers - Mesh: 3DML, 3D Tiles, OSGB, DAE, Models: 3DS, DAE, XPL, FLT, BIM: FBX, IFC
  • Video on Terrain - MPEG, AVI, MOV, WMV< Others
  • Point Cloud - LAS, LAZ, TXT, PTS, XYZ
  • Complex - FLY, KML



Outputs:
  • Projects & Kits - Desktop (FLY), Mobile (FLY), Web (KML), Offline desktop & mobile kits, Direct publishing to SGS
  • Feature Layers - Shapefile, SQLite, GeoPackage
  • Videos & Snapshots - MP4, WMV, BMP, TIFF
  • Mesh & Models - 3DML, OBJ

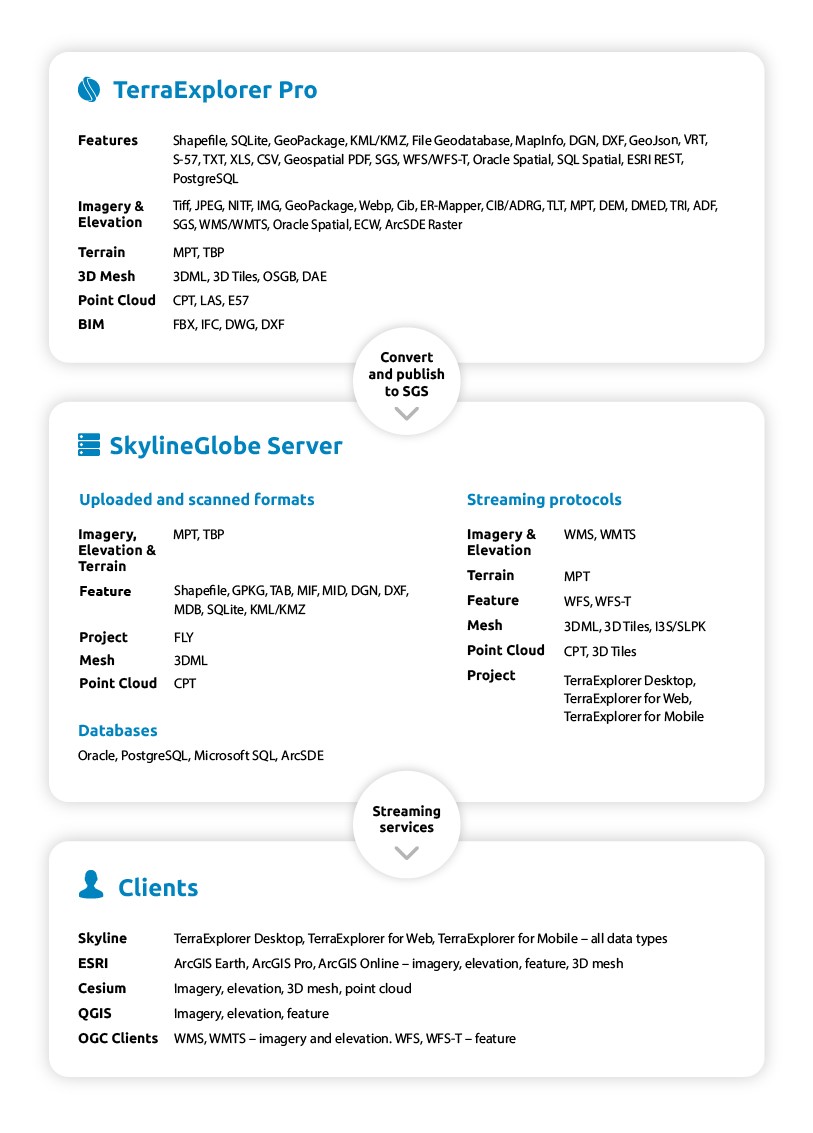

SGS

Inputs:
  • Published TerraExplorer Projects - Desktop (FLY), Mobile (FLY), Web (KML), Feature Layers GeoPackage, Raster Layers (MPT), Mesh Layers (3DML), Point Cloud (CPT), Published TerraExplorer Projects
  • Directory Scan - Terrain Database (MPT, TBP), Feature Layers (Shapefile, GPKG, TAB, MIF, MID, DGN, DXF, MDB, SQLite, KML, KMZ), Project (FLY), Mesh Layers (3DML), Point Cloud (CPT)
  • Direct Database Access - Oracle Spatial, Postgre SQL



Outputs:
  • Services - Terrain (MPT), Maps (WMS, WMTS), Feature (WFS, WFS-T), 3D Mesh (3DML, 3D Tiles 1.0 (GLB/glTF 2.0), I3S), Point Cloud (CPT, 3D Tiles)
