- On the sidebar > Layers tab, click the video on terrain object you want to edit, and then click Edit
> Properties

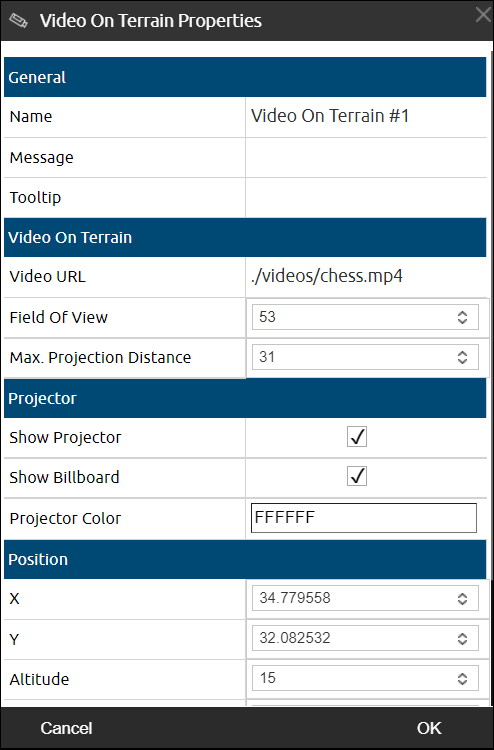

. The object's property sheet is displayed.
- Edit the object properties as required:
- Name - Name of layer.
- Message - The message associated with the video on terrain object.
- Tooltip - Text to display when the mouse cursor is placed over the object in the 3D Window.
- Video URL - URL to video file. Only MP4, Ogg, and WebM formats are supported.
- Field of View - Enter the horizontal field of view, in degrees, covered by the camera.
- Max Projection Distance - Maximum distance from the projector at which the video should be displayed. Set to zero to project on the terrain.
- Show Projector - Determines if the projector pyramid object is displayed in the 3D Window.
- Show Billboard - Show video on a floating billboard instead of on terrain.
- Projector Color - Select the color for the projector pyramid object. Click the Edit button to open the Color dialog box, or type the color code in hexadecimal 0xBBGGRR format.
- X - Enter the X-coordinate for the video projector.
- Y - Enter the Y-coordinate for the video projector.
- Altitude - Enter the altitude for the video projector.
- Yaw - Determines the direction angle of the video projector along the vertical axis relative to north.
- Pitch - Determines the tilt angle of the video projector along its lateral axis relative to the horizon.
- Roll - Determines the roll angle of the video projector along its longitudinal (front-to-back) axis.
- Default Location - Click to reposition the video projector in its default location.
