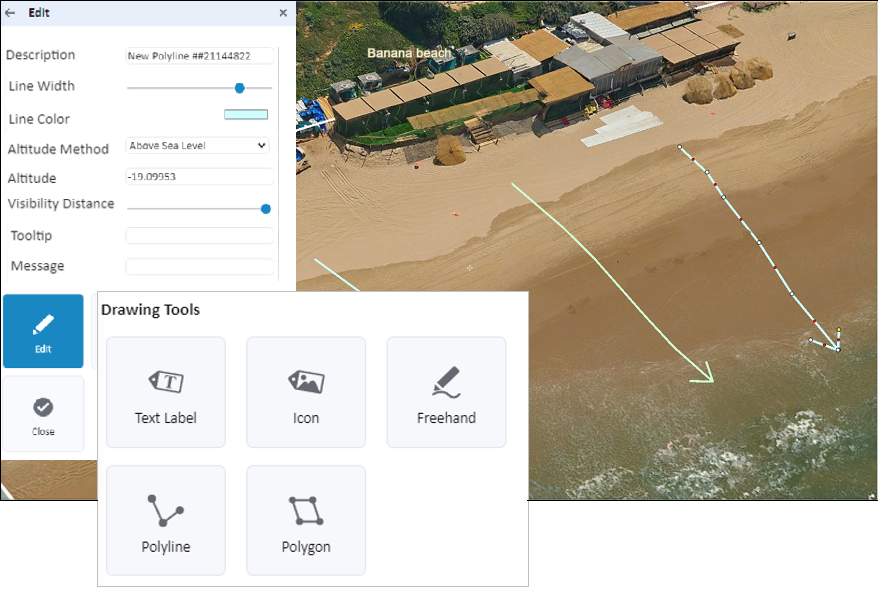

In TerraExplorer Fusion Plus, basic drawing objects can be added in the 3D World: text label, icon (image label), polyline, polygon, or freehand.
To create a drawing object:
- On the side toolbar >
> Drawing Tools > Select the drawing object.
- Do one of the following:
- For a text label or icon, click in the 3D Window where you want to place the object.
- For a polyline, click in the 3D Window to place the polyline points. Place a minimum of two points. Right click to complete.
- For freehand, click and drag in the 3D Window in the shape you want, while holding down the mouse button. Release the mouse button when the freehand line is complete. The Polyline property sheet opens
- For a polygon, click in the 3D Window to place the polygon points. Place a minimum of three points. Right click to complete.
- Edit the object's parameters in its property sheet.
Description Name of object. Text Label text. Image File Type a path to the image file to load for the image label (icon). Font/Icon Size Size of label text/icon. Text/Icon Color Color of label text/icon. Visibility Distance The distance from the camera at which the object disappears. Altitude Method Sets the altitude method to be used by the object: Above Sea Level or Relative to Ground. Altitude The altitude of the object, as defined in the Altitude Method, for the object. Tooltip Tooltip text to appear when hovering over the object in the 3D Window. Message Message associated with the object. Line Width Polyline/polygon width. Line Color Polyline/polygon line color. Fill Color Polyline/polygon fill color. Fill Opacity Opacity of polyline/polygon fill. - Click Close.
